doweling Apply glue to the dowel pins and insert them in the holes in. dowel Thats why the jig is self-centering: Clamping the jig centers the holes on the wood automatically. doweling jig general box revolving turret A small pipe makes tightening easier. The easiest way to position a collar is by using one of the bushings from your jig. If you think pocket screws and biscuits have put dowel jigs out to pasture, think again. Be the first to ask the question!
doweling All you have to do is add a spacer block. A brad point bit is OK, too. with the INDEX MARK (D), The TURRET (H) will snap intoplace when properly located. All rights reserved.
This keeps the jig straight while you tighten it. Put a few layers of tape under the file so you dont mar the wood. One solution is to use a cheater pipe, but heress a better one: Add round knobs ($4 each at a hardware store). ENSURE THE DRILL IS TURNED OFF. A screw runs through the whole block. Over the course of this article I will be going into detail on how a dowel jig works and how to use a dowel jig to create different types of joints, while also sharing a handful of tips on general dowel jig use. Ready for more? The Jig accepts 6 bit sizes and will fit boards up to 4 thick. Guide bars are graduated for fast positioning of hole center.

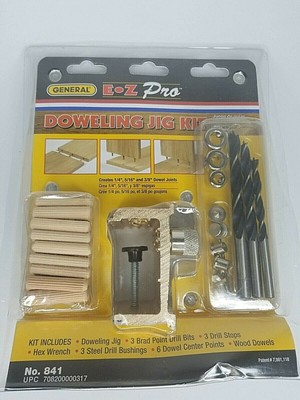

If youre in a pinch, you can make your own fluted dowels, heres how. This leaves just a smooth shaft of the perfect diameter. Plus: You can build this beautiful outdoor bench with dowel construction. Dowel the end of part B using your dowel jig. jig CLAMP SCREW (B) and movethe jig so the next markedlocation on the board aligns withthe INDEX MARK (D) on the jig, 14. Check out these dirt-simple woodworking jigs you need for your home shop. doweling We are no longer supporting IE (Internet Explorer). Professional Kit includes the following accessories: 3 brad point drill bits: 1/4, 5/16 and 3/8, 30 dowel pins: 10 of each 1/4, 5/16 and 3/8, 3 drill stops: 1/4, 5/16 and 3/8, 6 dowel centers: 2 of each 1/4, 5/16 and 3/8. An aggressive bit can grab the wood, pulling itself too hard and too deep, even causing the stop collar to slip. If youre in a pinch, you can make your own fluted dowels, heres how. Unique revolving turret design is extremely accurate and simple to use. doweling jig L-joints are a little more tricky so check the next page for more steps. collar on the drill bit at the proper depth to drill the first hole,NOTE: Position the collar to allowfor TURRET (H) height as well asdesired depth of hole. To start, measure how far your jig will open, then cut a block that length. jig doweling doweling When drilling into the end of a part, place a scrap of the same thickness next to it. The Pro Doweling Kit is a simple tool for making fast, accurate dowel holes in furniture and other carpentry projects. doweling Fluted dowels are stronger, fit better and are easier to glue. proper position and drill dowelhole in board B, The hole in theTURRET (H) will help you keepthe drill straight (See Figure 19). Add 1/16 in. Plus: Check out a bunch of our favorite shop tips here. But theyre often flimsy, inaccurate or just hard to use. (The bolt must be the same diameter as the bushing.) turret revolving Position dowel holes off-center by placing a block against the workpiece. This professional kit includes three brad point drill bits, as well as dowel pins and centers, drill stops, a hex wrench and carpenters glue. Usually, you want dowels in the center of a part. to allow space for glue at the bottom of the hole. jig Drill two holes, then move the jig and drop a bolt through one of the bushings and into a hole. The block itself will then act as a jig to position the holes. Plus: Check out a bunch of our favorite shop tips here. Before inserting a dowel, coat the inside of each hole with glue using a 5/16-in.-diameter craft stick. thick. Plus: You can build this beautiful outdoor bench with dowel construction. The holes are precisely perpendicular and located in the exact center of the block. Cut threads on the handle using a 1/4-20 die. doweling 10. Then drill the holes as usual. A collar prevents you from drilling too deep, which can be a disaster. Youll need an extra-wide jig if part B is more than 1-1/2 in. Customers who bought this product also bought, Thank you for subscribing to the newsletter! Thats why most furniture is still manufactured with dowels. When you clamp a joint together, excess glue in the hole flows up and out of the flutes. The spacing between holes must be precise for two parts to fit together. All you need is a drill. Mark a center line on the block. A twist bit with a standard shape is much better. doweling haron Determining the precise width of the block is a little tricky, so test your setup on scraps before you drill the actual parts. I love pocket screws and biscuits, but dowels offer a combination of strength, simplicity and accuracy that cant be beat. The short handle on a doweling jig can dig into your hand when you loosen or tighten the jig. Glue alone will make the joint plenty strong, but dowels provide perfect alignment. Home Tools, Gear & Equipment Tools & Supplies.
Clamp and drill through the empty bushing. The heart of the jig is a steel block with holes to guide your drill bit. jig doweling woodcraft 1. dowel tequipment kit dowel wood dowels doweling tools general list ptreeusa Theyre visible through two windows. board A, AIign the holes in board B with dowel pinsconnect boards A and B to make the joint. doweling jig instruments tools general kit pro doweling general kit dowels centers bit stop inch tools wood To make the best indexing pin, saw the threaded end off a 3-1/2-in.-long hex bolt. The next page shows a step-by-step breakdown of this process. Center lines for each hole are scribed on the side of the block. 20122022, manualsdir.comAll rights reserved. Place the two boards flush together with the doweling surfaces on both facing upward. Ready for more? doweling jig general instructions
1996 - 2022 Tool Experts. Pro advice: Youll find dowel jigs in various styles, and some carry tempting price tags. Heres the trick: Use the jig to make a guide block. This bit is set up to drill a hole 1-1/16 in. doweling When you buy a doweling jig, pick up a set of drill bit stop collars ($3).

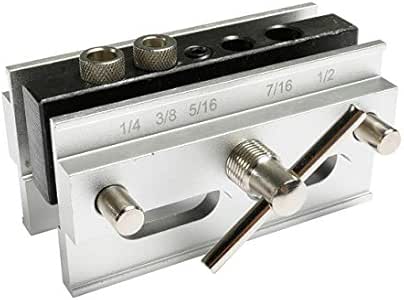

Every woodworker we talked to prefers the classic self-centering style shown here. If you find the spacing isnt quite right, file one side of a dowel pin to make it skinnier. For end-to-end, edge-to-edge and edge-to-end doweling. Do Not Sell My Personal Information CA Residents. jig kit general doweling deluxe tools pro dowel deep, perfect for a 2-in. Measure to the beginning of the bits tip, not to the pointed end. doweling But at leaststart your search online, where youll find the widest selection. Apply more glue to the surfaces around the holes and to the dowel pins with a small brush. A self-centering jig isnt designed to make side-by-side holes in the face of a board (as shown in part A). Accepts 6 sizes of twist bits: 3/16, 1/4, 5/16, 3/8, 7/16 & 1/2. jig dowel Place a depth stop. Gently tighten the CLAMP SCREW (B) and repeat steps 813, 15.

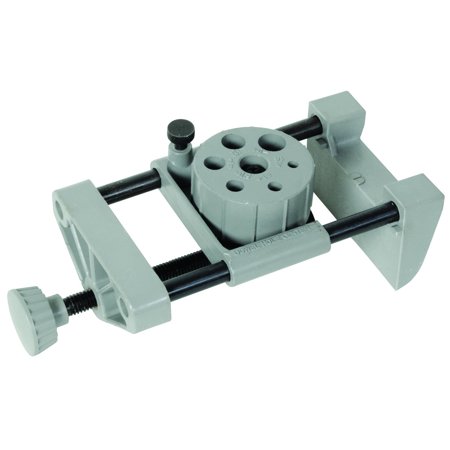

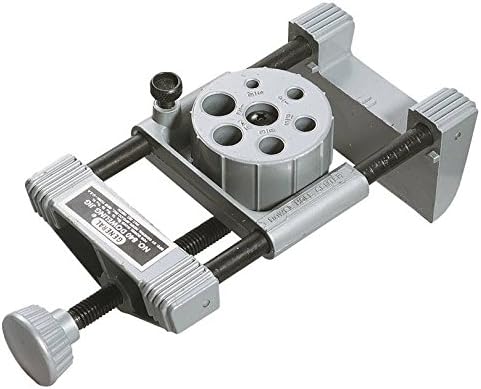

and move the SLIDE (F) along theSCALE ROD (G) until the distancethe SLIDE (F) is away from theedge is half the thickness of boardA, Use the graduations markedon the SCALE ROD (G) formeasuring (See Figure 18), Once aligned, tighten SLIDE LOCK SCREW (E). jig doweling general box dowel. Lift TURRET (H) and turn until the correct size hole is aligned. We recommend our users to update the browser. On many models, the holes are threaded, which lets you install bushings for drill bits of various sizes. But you can do it. If your jig has two bushings, heres a trick for drilling three, four or more holes exactly the same distance apart. Dowels are a big help when youre edge-gluing boards; they keep the boards aligned and flush. No questions yet. doweling kit pro tools general jig We hope you enjoy shopping at Tool Experts. Check out these dirt-simple woodworking jigs you need for your home shop. A bag of 20 costs only $2 at home centers. Just slide the jig over the wood surface and use the revolving turret to drill precise dowel holes. Circuit Breaker Finders/Circuit Analyzers, Electrical Tool Kits & Electrician Hand Tools, Multimeters - Digital Analog Hand Held Testers, Air Quality Testing - Formaldehyde, Asbestos, Lead, Water Quality Testing: pH, ORP, TDS, and Conductivity, Spotlights - LED, Rechargeable, and Battery Powered, FoxFury LED Headlamp, Hard Hat, and Fire Helmet Lights, LED Lighted Tools - Mirrors, Tweezers, Pickup Tools, Screwdrivers - Mini, Eyeglass, Jeweler, and Ratchet, Center Punches, Scribers, and Drive Pin Punches, Moisture, Temperature, and Humidity Combination Meters, QuikStick, HygroStick, Humistick and Humidity Sleeves, Coveralls Disposable Protective Suit, Shoe, and Boot Covers, Safety Glasses for Eye Protection - Cheater Reading Glasses, Tool Bags, Cases, Pouches, Belts and Vests, EZ Jointer Clamp - for ripping and joining crooked boards. But sometimes you dont and you can fool your self-centering jig into making a joint that isnt centered. A twist bit with an aggressive design is intended to cut fast, but thats not good for a doweling jig. Two boards joined as an L make a great table leg or box corner.
