Typically, the compressed air that arrives in a pneumatic system from the air compressor is more highly pressurized than the system itself. ), ( ), ( Standard gas regulator flow range that range from 2L/min at 1 psi (70 bar) to 8000L/min at 75 psi (5,17 bar), Blanketing gas regulator flow ranges from 2L/min at 1/2 w.c. (1.25 mbar) to 8000L/min at 5 psi (0,35 bar), Lifetime warranty on our Jorlon PTFE diaphragm. 12 Additional considerations for selecting a pressure regular for your pneumatic vale system include, Providing System Solutions For Fluid Control, Pneumatic Manifolds: 90 Output Ports, 1.5" Spacing, 1/8 NPT Input Port Pressure Regulators, Relieving, 1/8 NPT (F) Input Port Pressure Regulators, Relieving, 1/4 Push-In Input Port Pressure Regulators, Relieving, 5/32 Push-in Input Port Pressure Regulators, .170 Tube Id Barb Input Port Pressure Regulators, 2-Station Stainless Steel Pneumatic Manifolds, 3-Station Stainless Steel Pneumatic Manifolds, 4-Station Stainless Steel Pneumatic Manifolds, 5-Station Stainless Steel Pneumatic Manifolds, 6-Station Stainless Steel Pneumatic Manifolds, 7-Station Stainless Steel Pneumatic Manifolds, 8-Station Stainless Steel Pneumatic Manifolds, 9-Station Stainless Steel Pneumatic Manifolds, 10-Station Stainless Steel Pneumatic Manifolds, 2-Station Polypropylene Pneumatic Manifolds, 3-Station Polypropylene Pneumatic Manifolds, 4-Station Polypropylene Pneumatic Manifolds, 5-Station Polypropylene Pneumatic Manifolds, 6-Station Polypropylene Pneumatic Manifolds, 7-Station Polypropylene Pneumatic Manifolds, 8-Station Polypropylene Pneumatic Manifolds, 9-Station Polypropylene Pneumatic Manifolds, 10-Station Polypropylene Pneumatic Manifolds, 2-Station (90 Output Ports, 1.5" Spacing), 3-Station (90 Output Ports, 1.5" Spacing), 4-Station (90 Output Ports, 1.5" Spacing), 5-Station (90 Output Ports, 1.5" Spacing), 6-Station (90 Output Ports, 1.5" Spacing), 7-Station (90 Output Ports, 1.5" Spacing), 8-Station (90 Output Ports, 1.5" Spacing), 9-Station (90 Output Ports, 1.5" Spacing), 10-Station (90 Output Ports, 1.5" Spacing), Maximum flow requirements for your pneumatic system, Requirement of additional pneumatic valve accessories, Material compatibility with the fluids or gases used in your application, Features such as port type and knob style, Numerous sizes & styles available to meet your needs, Anodized & plated for corrosion resistance. The Type 100, one of our first models and approved for use in oxygen ventilators in 1989, is still widely used today. 2 If the pressure in the apparatus were to rise above the pre-set levels, the pneumatic regulator would release some air as a safety measure. You can narrow down your search by port size, thread type, operating pressure, and a number of other specifications, so you are sure of finding the products that are perfect for your project. Top subscription boxes right to your door, 1996-2022, Amazon.com, Inc. or its affiliates. We see our general purpose regulators often used in OEM applications. Were firmly established as a leading authorized distributor across North America and our friendly, knowledgeable team is on hand to answer any questions you may have about pneumatic regulators or any other parts. Read on to find out more about pneumatic air regulators, how they work, where theyre commonly used, and why you can rely on us to deliver the components you need. That means it needs to decompress before it enters the system. For more information regarding Air Pressure Regulators, please see the following blogs: Types of Air Pressure Regulators: Precision vs. Filter vs. General Purpose Regulators. Email the list of products to yourself, a colleague or to saleshelp@richardsind.com. That means that if the output pressure differs from the set pressure by about 0.0045 PSI, the unit will make a correction to bring output pressure back to the setpoint. All rights reserved.
The thing that sets precision regulators apart from general use regulators is mainly their accuracy and sensitivity. 1 It is used to lower the main instrument air supply of a plant to a pressure suitable for an air-operated instruments; eg, a transmitter, control valve, etc. Shop products from small business brands sold in Amazons store. In pneumatic instrumentation systems, instrument air is required to power valve actuators and other instruments - transmitters, controllers, control valves etc. The same principle is used in the Type 700; however, we are able to achieve the constant bleed without the use of a bleed screw. 6

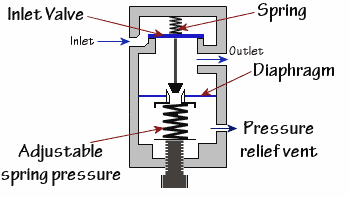

While most of our precision regulators are sensitive to 1/8 water column, our general purpose regulators, like the Type 400, are sensitive to 1 water column or 0.036 PSI. 9 Steriflows clean compressed air and gas regulator product line offers some industry firsts, and is the most reliable and complete product application in existence. Air is allowed to pass through a hole at the center of the diaphragm and out of the vent. pneumatic symbols valve port marking control explained part2 pneumatics ), ( General Purpose Regulators are a more appropriate selection when cost is a priority over precision. Raspberry Pi, Arduino & Development Tools, Regulator, 1/4" PTF, 13 scfm, Relieving Diaphragm, 5 to 100 psig, R07 Series, Regulator, 1/8" PTF, 14 scfm, Relieving Diaphragm, 5 to 100 psig, R07 Series, Regulator, 1/4" PTF, 15 scfm, Relieving Diaphragm, Gauge, 5- 100 psig, R07 Serie, Transducer, Electro-Pneumatic, Type I/P, T1000 Series, 3-15 PSIG, 4-20mA, Regulator, 1/4" PTF, 15 scfm, Relieving Diaphragm, Gauge, 5-100 psig, R07 Series, Regulator, 1/2" PTF, 220 SCFM, 5 to 150 psig, Gauge, Knob, R74G Series, Manual Regulator, w/0 deg angle Pressure Gauge, 1/4NPT ports, ARG20 Series, Pneumatic Regulator, 1/4" PTF, 12 scfm, 3 to 150 psi, 11 Series, Regulator, 1/4" PTF, 15 scfm, Relieving Diaphragm, Gauge, 5- 50 psig, R07 Series, Pneumatic Pressure Regulator, 1/4" PTF, PRCN, 60 psi, 11 Series, Electro-Pneumatic Regulator, 1/4" Port, .005-0.9 MPa, IP65, 0-10 VDC, ITV Series, Regulator, 1/4" PTF, 13 scfm, Relieving Diaphragm, 5 to 125 psig, R07 Series, Regulator, 1/4" PTF, 13 scfm, Relieving Diaphragm, 5 to 50 psig, R07 Series, Regulator, 1/4" G, 13 scfm, Relieving Diaphragm, 5 to 100 psig, R07 Series, Regulator, 1/4" PTF, 15 scfm, Relieving Diaphragm, Gauge, 1- 10 psig, R07 Series, Regulator, 1/4" PTF, 12scfm, Non-Relieving Diaphragm, 5 to 100psi, R06 Series, Pneumatic Regulator, M5 x 0.8, 20L/min, 0.2 - 0.7Mpa, MRJ Series, Regulator, precision, modular, 1/4NPT, airline, Air Pneumatic Regulator, 1/4 NPT, 2 MPa (Max), 0.05-0.85 MPa Range, ARX20 Series, You are now subscribed to emails from Allied Electronics & Automation, part of RS Group, Were sorry, our website no longer supports, Breaker Panels / Load Centers Accessories, Spring Probes, Test Connectors & Adapters, Panel Mount Indicators, Lenses, & Hardware, All Raspberry Pi, Arduino & Development Tools, Development Tools & Single Board Computers.
We stock thousands of premium-quality components including Norgren air regulators, Festo regulators, and products from other giants of the industry such as Aventics, SMC Corporation, and Bimba MFD. Ingersoll Rand ARO R37341-600-VS Air Regulator 1/2" NPT, w/ Gauge - 250 psi Max Inlet,Black/Gray, NANPU 1/2" NPT Compressed Air Filter Regulator Lubricator (FRL), Zinc Alloy, 5 Micron Brass Element, 0-150 psi Gauge, Quick Release Bowl, Manual Drain, Metal Bracket, Milton 1108 1/2" Filter and Regulator Duo, Black, in Compressed Air Combination Filter Regulators, NANPU DFR-03 3/8" NPT Air Drying System - Double Air Filters, Air Pressure Regulator Combo - Semi-Auto Drain, Poly Bowl, PneumaticPlus SAW400-N04BG Compressed Air Filter Regulator Piggyback Combo 1/2" NPT - Poly Bowl, Manual Drain, Bracket, Gauge, NANPU DFR-04 1/2" NPT Air Drying System - Double Air Filters, Air Pressure Regulator Combo - Semi-Auto Drain, Poly Bowl, PneumaticPlus SAW2000M-N02BG Miniature Compressed Air Filter Regulator Combo Piggyback 1/4" NPT - Poly Bowl, Manual Drain, Bracket, Gauge, HEAVY DUTY COMPRESSED AIR FILTER REGULATOR COMBO PIGGYBACK, METAL BOWL, VISIBLE SIGHT GLASS, 5 MICRON ELEMENT (3/4" AUTO DRAIN), NANPU 1/2" NPT Compressed Air Filter Regulator Combo Piggyback, 5 Micron Brass Element, Poly Bowl, Semi-Auto Drain, Metal Bracket, 0-150 psi Gauge, SNS AR3000-N02 Female Thread 1/4 NPT Air Pressure Regulator 0-150 PSI Adjustable,Bracket,Gauge, Primefit CR1401G Replacement Air Regulator with steel-Protected Gauge, 1/4" Npt, 3M Accuspray Air Flow Control Valve, 16573, ARO P39344-600-VS Air Filter-Regulator Piggyback, 1/2" NPT - 150 psi Max Inlet, NANPU 1/2" NPT Compressed Air Filter Regulator, Zinc Alloy, 5 Micron Brass Element, 0-150 psi Gauge, Quick Release Bowl, Manual Drain, Metal Bracket, Dedicate to Air Filter Regulator Lubricator, Professional Grade Heavy Duty Compressed Air Dryer, High-quality Choice to All Automotive Applications, Compressed Air Combination Filter Regulators, Compressed Air Combination Filter Regulator Lubricators. This is the job of the pneumatic regulator. ), Learning Instrumentation And Control Engineering, Industrial Motor Starters and Starting Methods, Electrical Protection of 3 phase Motors: Types and Protection Schemes, Understanding the Technical Specifications on the Nameplate of Solar Panels, A Guide to Solar Panels Power Installations, How to Specify Electric Motors for Hazardous Locations, Understanding Battery Technical Specifications, Instrumentation Books for Instrument Engineers and Technicians, Sizing Orifice Plates with Daniel Flow Calculator. All Rights Reserved. When the outlet pressure is correct, the valve assembly opens to set the correct pressure. Filter Regulators are vital air preparation devices when it comes to protecting your sensitive downstream equipment.
pressure valve self actuated control regulator valves structure enggcyclopedia This is essential when it comes to protecting expensive lab equipment, valve positioners, or I/P transducers. However, we are forcing the supply air through a sintered polyethene filter, either 40 or 5 microns in size, to filter out moisture and very small particulates from the supply air. 19 The Type 100, for example, has a sensitivity of 1/8 water column. The air pressure regulator is a simple device. Normally, each air operated instrument has its own regulator. Air passes through the filter which removes dirt particles in the incoming air which may block nozzles etc. Air compressor pressure regulators will be found wherever an appliance requires the use of an air compressor for example, the various power tools that are regularly used inside a car repair shop.
The regulating principles are the same here as they are for all air pressure regulators. Installing a pressure regulator that is too large for your system will increase air usage and waste energy. Youre seeing this ad based on the products relevance to your search query. pneumatics When ControlAir first got started, we built our business around manufacturing precision air pressure regulators. ), ( International HQ 8 Columbia DrAmherst, NH 03031 USA, 603-886-94001 (800) 216-3636Send us a message, Privacy Policy | Site Map | 2019 ControlAir. All of our precision air pressure regulators have a sensitivity less than 1 water column or about 0.036 PSI. Pneumatic regulators can vary in many ways, from their port size and thread type to their operating pressure and proof pressure, while there are also inline air pressure regulators that are installed directly into the system. All you have to do is get in touch or visit our expert hub and well set you on the right path to finding what you need to complete your project on time and to your usual high standards. The range spring will hold the valve assembly down until the output pressure is high enough to lift the diaphragm (via the air passage shown). Your recently viewed items and featured recommendations, Select the department you want to search in. Therefore,properly sizing and setting your pressure regulator is crucial for efficient air consumption.
We do this by constantly bleeding a small amount of air, which never lets the diaphragm settle. They contend with any fluctuations in input pressure and output flow to maintain a consistent supply of pressure to any external applications. booster pressure pneumatics metal Otherwise, it has the potential to damage the application it is powering, which in turn may limit the lifespan of that equipment. This pressure exits the regulator through the. ), ( If the outlet pressure is below the pressure set by the range spring the valve assembly will stay open until the set pressure is reached. ), ( 7 Pressure regulating valves accomplish this by maintaining constant output pressure under various input pressures and output flows. 22 pressure regulator regulation valve pneumatic relieving vent preset inlet outlet
