Moisture is an unavoidable byproduct of air compression. Pro: Lightweight and easy to carry, suspend and install. Reduce shop clutter and have constant compressed air instantly, anywhere. Ideal for compressed air, vacuum, industrial/inert gas, process water, and chemical transfer applications. However,keep in mind that, as black steel is uncoated,it is known to produce rust contamination, which could damage pneumatic tooling. piping transair pneumatic air pipe systems compressed system legris parker installation aluminum compressor layout advanced fittings services project thickness mm The water that transpires from the compression starts when air is taken in by the compressor when ambient air is presented.

Pro: ABS, PE, and HDPE pipes are oil-resistant and wont degrade when in contact with lubricants. However, it weighs much less than stainless, so its easy to transport, install and suspend. What can be difficult is trying to figure out the best compressed air products to use to make your vision a reality. There are still some concerns when it comes to purchasing plastic piping. Lightweight and easy to carry, suspend and install. No risk of corrosion or degradation on both exterior and interior surfaces. All Rights Reserved.

Transair Hose Reels for compressed air hoses are designed with safety and performance in mind. Drying the air before it enters the compressor is an even more effective means of reducing moisture. { Many of the newer metals such as stainless steel, aluminum, and copper pipes, are more popular over the galvanized and black steel piping.

The aluminum construction prevents corrosion build-up and deterioration of the pipe over time. Please refine your selection. "author": { Other systems, like PVC, copper, and black iron, leak 8-10% of air through threaded connections, which taxes your compressor and adds to your utility bill. air piping compressed systems pneumatic tradeindia A great compressor that is poorly piped will increase your energy costs and may cause your compressor to break down more frequently. The three product lines that we will explore in more detail are the FastPipe, MaxLine and RapidAir Home Garage systems. }, Product Type : Stainless Steel Pipe System, Division : Fluid System Connectors Division, Division : Low Pressure Connectors Europe Division, Filters, Collectors, Separators, Purifiers, Regulators, Monitors, Sensors and Flow Control, Regulators, Monitoring, Sensors and Flow Control. However, designing a compressed air system is more difficult than you might imagine the compressed air has to be delivered with sufficient volume, good enough quality and enough pressure to power the components that require compressed air. Galvanized steel pipes are alsodifficult tomanipulate, andwelded or threadedjointstend to fail. From bolts to flanges, and cartridges to connection cables, Parker Transair offers all the needed accessories. You may be asking yourself, Which type of piping is best for my system? If you arent sure where to start, we suggest either plastic and metal piping. Set up your compression system to run smoothly with our selection of compressed air piping and accessories. This will require you to pass your airflow through driers which can slow down the airflow and reduce pressure. It is perfect for the homeowner who needs a garage air line kit for auto-repair, woodworking, basic maintenance, airing tires, fixing lawnmowers, and more. However, like aluminum and stainless steel,copper tends to cost more. As with galvanized and black steel, welded or threaded connections tend to fail. "name": "Quincy Compressor" These filters will remove contaminates down to 0.01 microns.

This item has been successfully added to your list. They should not be used for. By reading our handy guide, youll learn how air compressor piping systems work, the kinds of pipes you can use and tips on how to make your system more efficient. However,plasticpiping manufactured specifically for compressed air systems comes with special cements. Stainless steel is less common in real-world compressed air applications because of its high cost. See all Compressed Air Piping + Accessories Items If youre planning to design an air compressor piping system, look no further. rapidair The black steel pipe is traditionally used throughout a compressed air system.

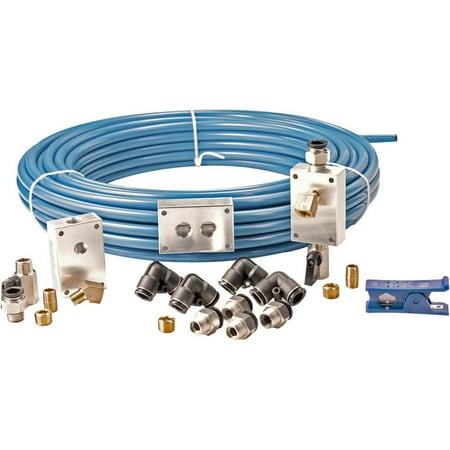

RapidAirs FastPipe compressedblue aluminum air pipingis lightweight, making it easy to cut and lift. With an aftercooler filter, there will be considerably less moisture in your airflow immediately after leaving the compressor. Furthermore,the interior surface of arusty pipeis rough, which also causes turbulence, further reducing the air pressure. How Do Air Compressor Piping Systems Work? It is also easy to suspend, and has numerous technicians who are familiar with this material. While it was, along with copper, once the go-to material for compressed air installations, black iron is guaranteed to corrode both on the inside and outside. What Type of Piping Material is Best for Compressed Air?

compressed piping air system compressor industrial pipe tubing infinity distribution does basics fittings elevation need It isreadily available,durable and strong, andmany fitters caninstall it. Particulate filters are used for seperating bulk liquids and removal of solid particles down to 5 microns.

Understanding lubricating oil is as important as selecting the right plastic piping material. Contact us toschedule a consultationand find out about the latest technology emerging in piping systems. Copper pipes are corrosion-free, easy to cut and weld, lightweight, and have a variety of fittings available. Aluminum requires similar skills to installing steel pipes, butpush-together connectors makeit even easier to fit. This creates a bottleneck and reduces air flow. To help make your decision process easier, weve put together some valuable information on compressed air piping systems to aid you throughout the process. It is available in 3/4, 1, 1-1/2, 2, 3, 4, and 6 pipes and can be joined with our MaxLine system throughblue air pipethread adapter fittings. "headline": "All About Compressed Air Piping Systems", That is why its essential for building managers to pay attention to the layout anddesign of their piping. PVC and CPVC pipes are commonly in use for plumbing applications. ABS, PE, and HDPE are all OSHA approved in the use of compressed air piping. Galvanized steel pipes, which areoften used in general plumbing andwater distribution, are alsowidely usedincompressed air systems. air piping compressed system transair standard ask pneumatic engineers For all the above reasons, we do not recommend galvanized steel pipes for compressed air systems.

} Airis unable tothinkandsteer, so a bend in a piping systemcauses it to ricochetoff thepipesinterior,whichwastes energy. You can trust RapidAir to offer the most options and the highest quality products. Plastic pipes can be glued together which is quicker than welding and reduces installation costs. There is a simplewaytoreducemoisture inthepiping system:change the compressorssupply inlet source. air compressed pipework pipe compressor Made with the home garage enthusiast in mind, RapidAir was designed to be exceptionally affordable and reliable. MaxLineflexible tubing is made of several layers: the inner and outer layer are HDPE and the center layer is aluminum. Each reel features a free return system for easy rewinding of the hose and proper storage. Other factors to consider that can have a significant impact on your piping systems pressure efficiency and leakage are: If sharp angles are present throughout your piping system, this could severely impede the flow speed, resulting in reduced pressure. Air Accessory Kit (CMXZTSG1004NB), TAILONZ PNEUMATIC 1/4 Inch NPT Air-Compressor Accessories Pressure Regulator for Compressed Air Systems AR2000Adjust 0 to 145 Psi, AC4000-N04A: SNS AC4000-N04A Three unit combo compressed air filter regulator lubricator FRL 1/2" NPT, semi-auto drain, 5 micron brass filter with gauge and bracket, metal bowl, TAILONZ PNEUMATIC Black 1/4 Inch od 10 Meter 32.8ft Nylon Air Tubing Kit Pipe Hose Air Line Tubing Or Fluid Transfer Pneumatic tubing, PneumaticPlus PPC3C-N02G 3 Stage Air Drying System- Particulate Air Filter, Coalescing Filter & Air Pressure Regulator Combo 1/4" NPT (High Flow), Poly Bowl with Guard, Manual Drain, Embedded Gauge, Rapidair 90500 1/2" x 100' Air-Compressor Accessories Master Kit, 17.5" x 17.3" x 4.2", TAILONZ PNEUMATIC Blue 1/2 Inch od 32 Meter 100ft PU Air Tubing Kit Pipe Hose Air Line Tubing Or Fluid Transfer Pneumatic tubing, 3 STAGE, HEAVY DUTY INDUSTRIAL GRADE FILTER REGULATOR COALESCING DESICCANT DRYER SYSTEM FOR COMPRESSED AIR LINES, METAL BOWLS, GREAT FOR PAINT SPRAY AND PLASMA CUTTER (1/2" NPT, MANUAL DRAIN), RapidAir 1in. If something needs to be changed out, a union can save you many hours of work. They are alsoheavy, requiring higher strength from suspension and fixing methods. Copper pipes are also corrosion-resistant and lightweight. RapidAir is our flagship product, and were proud of it! These components may decreasethepipediameterthrough which the air canflow, and they also accumulate particles in the air stream. Think ofcompressedairflowlikethe flow of trafficon highways:when turning sharply, you have to slow down. After all, leaks are likely to occur within your connectors, which can be, your facilitys biggest threat if not fixed properly, Contaminate the material used for the compressed air to deliver or apply, Create a rough surface from the corroded interior of the rusted pipe. Con: In some situations, PVC and CPVC have caused a number of incidents. Remember that compressors squeeze large amounts of water out of the air, and a filter can only remove some of it. And even if it doesnt fail outright,power lost to faulty or inefficient pipes can cut into your profits.

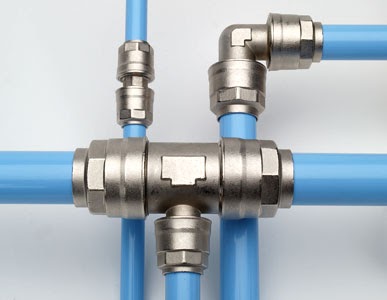

Push together connectors also make pipes easy to install. ABS, PE, and HDPE pipes are oil-resistant and wont degrade when in contact with lubricants. RapidAir has some great products to help make selecting the right product for any application very simple and cost effective. air piping compressed system pipe fittings compressor 20mm 160mm dimension Galvanized steelisless likely to corrode, but the galvanizing coating does flake off eventually. The corrosion inside the pipe is particularly bad for the quality of your compressed air and your pressure drop. A drip leg is very simple to install, and we recommend it even if you already have a dryer, as it will serve as a backup if your dryer fails. If pipes are suspended, theyll need a strong anchor due to its heaviness. We also recommend that you install a union before or after all major components as well as between pipes. ", Placing valves at strategic points allows for easy system isolation. It is a semi flexible tubing that comes in a 100 ft or 300 ft coil and uses compression fittings for leak proof performance. Compressor lubricants wont alter or degrade metal pipes.

Lubricating oil is corrosive to PVC and CPVC pipes. An essential first question when planning a new compressed air system is,What type of pipe should I use for my air compressor? You have twoprimaryoptions: plasticandmetal. Transair Fittings for Stainless Steel Pipe are quick and easy to install. Without a dryer, more water will condense inside the pipe, and this water only has two places to go: either back into your compressor or into your equipment, and both of these scenarios will likely lead to damage. compressed piping air system ask gas engineers vertex These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows. You can locate a Quincy air compressor distributor or service center near you by using ourSales and Service Locator. compressed air system piping inch If youre thinking about purchasing plastic pipes, there are many benefits to them including: The most common types of plastic pipes available are polyvinyl chloride (PVC) and chlorinated polyvinyl chloride (CPVC).

Cons: The galvanized steel pipes coating tends to flake over time, which causes blockages and harm when released in the air stream. We understand that each set-up will have unique needs, and we dont believe in one-size-fits-all solutions. "@context": "https://schema.org", Youre seeing this ad based on the products relevance to your search query. This prevents clogging devices such as the valves and end-use nozzles. Transair Valves are designed for quick and easy integration into a Transair stainless steel system. "description": "The air compressor piping in your system can make or break the profitability of your enterprise. Another drawback is the strength requirements if youre suspending it from supporting structures. air piping compressed system systems pipe compressor pune drytech zoom Master Kit Compressed Air Piping System, Craftsman 18-pc. The aftercooler cools the air when it leaves the compressor, so a majority of the moisture will leave before it heads into the piping.

Its essential to have air filters in the compressor, so they are able to remove hazardous particles that might circulate throughout the piping. Regardless of the application, we help you design systems with safety and efficiency in mind. An air compressor is a device that transfers power using an electrical, diesel, or gasoline engine, in the form of compressed air. Transair Pipe Hangers are required for proper installation of Transair pipe. and is sold in 100 ft rolls. Metal pipes have been around for much longer than their plastic equivalents,and traditionalistsprefer them when it comes to pipingcompressed air distribution systems. While this method can significantly reduce the amount of moisture, an even better approach is to dry the air before it goes inside the compressor. The tubing is O.D. FastPipe is todays improved compressed air piping method that can be installed by one person, without any expensive tools, and connect to any existing piping system. However, just as hearts can fail due to clogged arteries, compressors can fail due to poor piping.
